173630-1
Manufacturer:
TE Connectivity
Mfr.Part #:
173630-1
Datasheet:
Description:

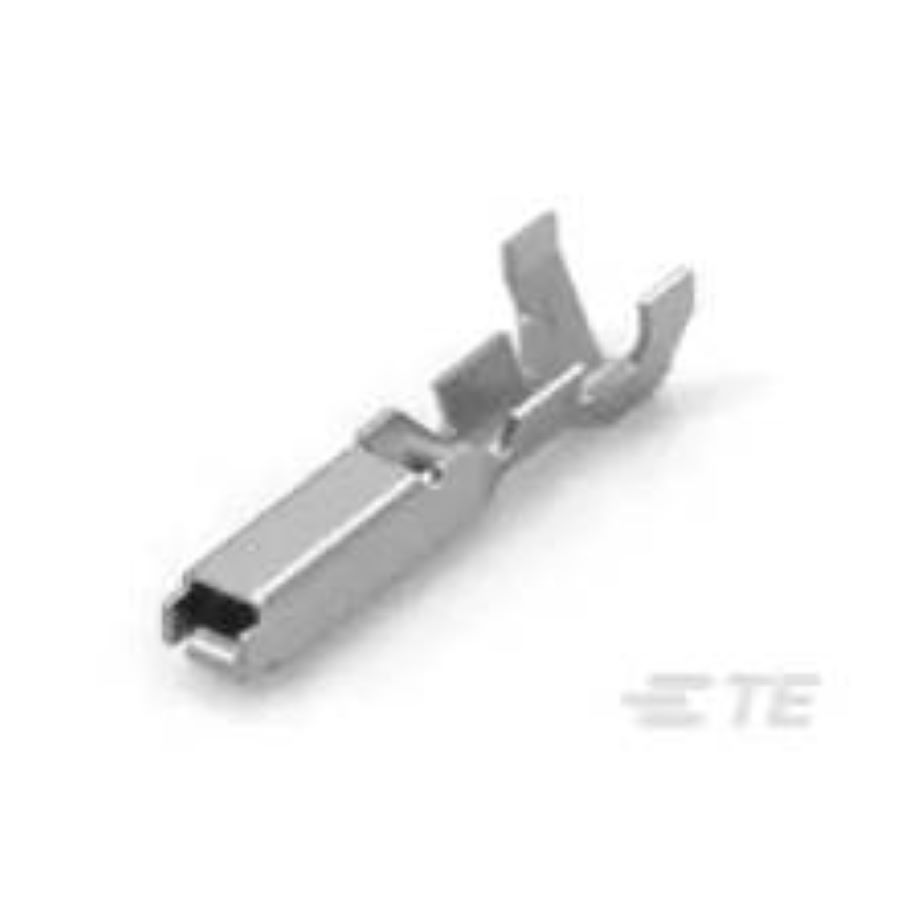

Automotive Connectors Cable Female 22 AWG
| Parameter | Value |
|---|---|
| Length | 16 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 4.2 mm |
| Depth | 4.4 mm |
| Radiation Hardening | No |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Connector, Crimp, PCB, Signal |
| Wire/Cable Gauge | 24 AWG |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 22 AWG |
| Insulation Diameter | 1.9 mm |
| Mating Tab Width | 1.8034 mm |
| Tab Thickness | 640 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Current Rating | 4 A |
| Packaging | Reel |
| RoHS | Compliant |
| Wire Gauge Range | 22 AWG |
Stock: 11853
Distributors
pcbx
pcbxUnit Price$0.05932
Ext.Price$0.05932
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.05932 | $0.05932 |
| 10 | $0.02966 | $0.29660 |
| 50 | $0.02657 | $1.32850 |
| 100 | $0.02380 | $2.38000 |
| 500 | $0.02132 | $10.66000 |
| 1000 | $0.01910 | $19.10000 |
| 3000 | $0.01711 | $51.33000 |
| 5000 | $0.01533 | $76.65000 |
| 10000 | $0.01372 | $137.20000 |
